SYNCHRONOUS BUCK

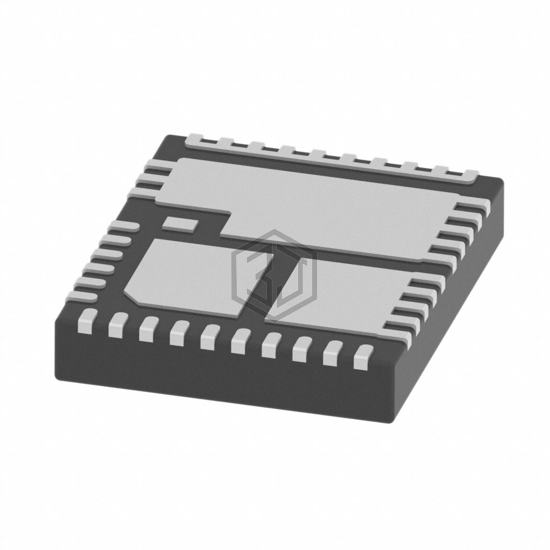

CSD95480RWJ is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. SYNCHRONOUS BUCK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 41-PowerTFQFN.
In Stock: 9,011
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive, Capacitive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 70A |
| Current - Peak Output | 90A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 16V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Shoot-Through |
| Mounting Type | Surface Mount |
| Package / Case | 41-PowerTFQFN |
| Supplier Device Package | 41-VQFN-CLIP (5x6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CSD95480RWJT | Texas Instruments | POWERSTAGE | 100% | View |
| AOZ5518QI | Alpha & Omega Semiconductor Inc. | 25V/65A 5X5 DRMOS POWER MODULE | 94% | View |
| AOZ5313NQI | Alpha & Omega Semiconductor Inc. | 20V/65A DRMOS FOR GPU | 86% | View |
| AOZ5318NQI | Alpha & Omega Semiconductor Inc. | 25V/65A DRMOS FOR GPU | 86% | View |
| MP86957GMJ-Z | Monolithic Power Systems Inc. | INTELLI-PHASETM SOLUTION (INTEGR | 85% | View |
| BTN7970B | Infineon Technologies | BTN7970 - INTEGRATED HALF-BRIDGE | 81% | View |
Submit your RFQ for CSD95480RWJ and get a quote within 24 hours.
