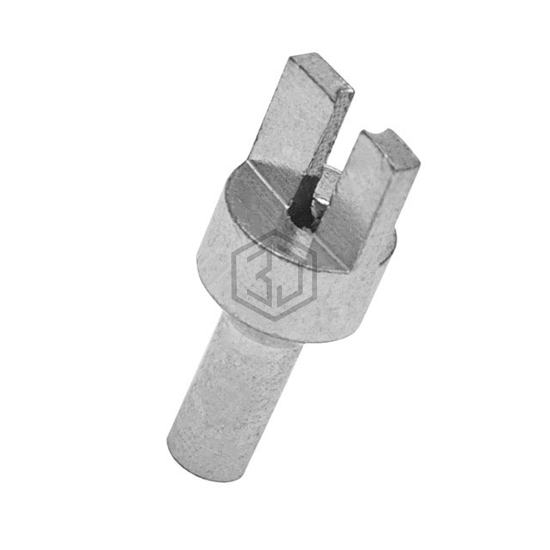

H9067-01 - Harwin Inc. - Terminals - Turret Connectors

H9067-01

Harwin Inc.

TERM TURRET HOLLOW L=4.75MM TIN

H9067-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET HOLLOW L=4.75MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.

In Stock: 5,201

Product Attributes

AttributeValue
Product StatusActive
Terminal TypeSingle End, Fork, Hollow
Number of TurretsSingle
Length - Above Board0.187" (4.75mm)
Length - Below Flange0.125" (3.18mm)
Length - Overall0.313" (7.95mm)
Mounting TypeThrough Hole
TerminationSwage
Flange Diameter0.125" (3.18mm)
Diameter - Turret Head-
Staking Side OD0.059" ~ 0.060" (1.50mm ~ 1.52mm)
Staking Side ID0.042" ~ 0.043" (1.07mm ~ 1.09mm)
Mounting Hole Diameter0.060" ~ 0.063" (1.52mm ~ 1.60mm)
Board Thickness0.094" (2.39mm)
Contact MaterialBrass Alloy
Contact FinishTin
Contact Finish Thickness-
InsulationNon-Insulated

Frequently Asked Questions

H9067-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET HOLLOW L=4.75MM TIN

The mounting type of H9067-01 is Through Hole.

The material of H9067-01 is Brass Alloy.

The termination type of H9067-01 is Swage.
