TERM TURRET SLOTTED L=3.96MM

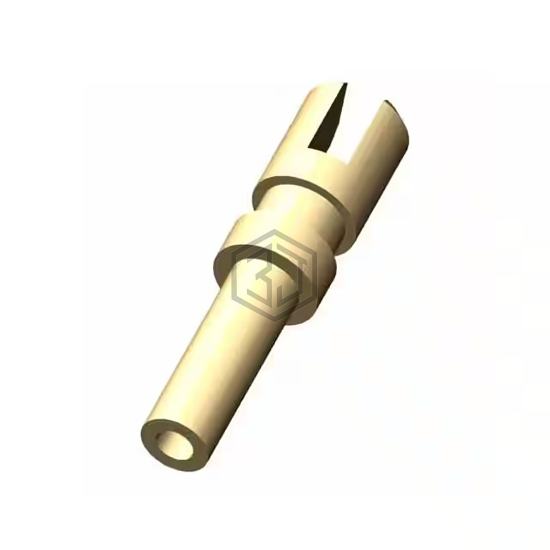

H9025-05 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET SLOTTED L=3.96MM. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 2,357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Fork |
| Number of Turrets | Single |
| Length - Above Board | 0.156" (3.96mm) |
| Length - Below Flange | 0.145" (3.68mm) |
| Length - Overall | 0.290" (7.37mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.072" (1.83mm) |
| Diameter - Turret Head | - |
| Staking Side OD | - |
| Staking Side ID | 0.026" (0.66mm) |
| Mounting Hole Diameter | 0.050" ~ 0.054" (1.27mm ~ 1.37mm) |
| Board Thickness | 0.126" (3.20mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H9025-05 and get a quote within 24 hours.
