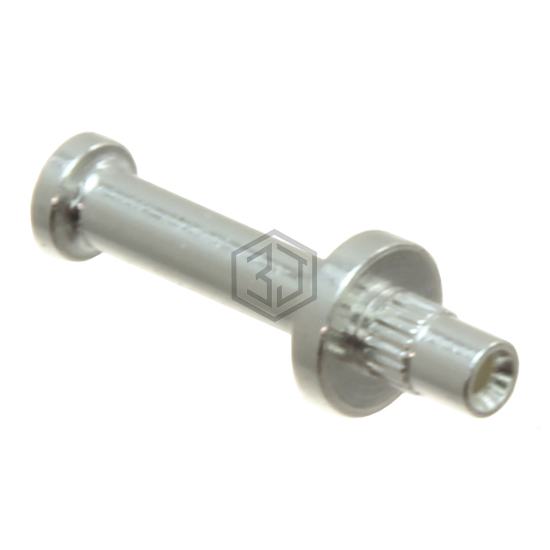

TERM TURRET SINGLE L=6.35MM
2533-0-00-44-00-00-07-0 is a Terminals - Turret Connectors manufactured by Mill-Max Manufacturing Corp.. TERM TURRET SINGLE L=6.35MM. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Press-Fit, Knurled, Swage.
In Stock: 6,181
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End |
| Number of Turrets | Single |
| Length - Above Board | 0.250" (6.35mm) |
| Length - Below Flange | 0.085" (2.16mm) |
| Length - Overall | 0.335" (8.51mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Knurled, Swage |
| Flange Diameter | 0.111" (2.82mm) |
| Diameter - Turret Head | 0.078" (1.98mm) |
| Staking Side OD | 0.049" (1.24mm) |
| Staking Side ID | 0.026" (0.66mm) |
| Mounting Hole Diameter | 0.052" (1.32mm) |
| Board Thickness | 0.062" (1.57mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Silver |
| Contact Finish Thickness | 300.0µin (7.62µm) |
| Insulation | Non-Insulated |
Submit your RFQ for 2533-0-00-44-00-00-07-0 and get a quote within 24 hours.
