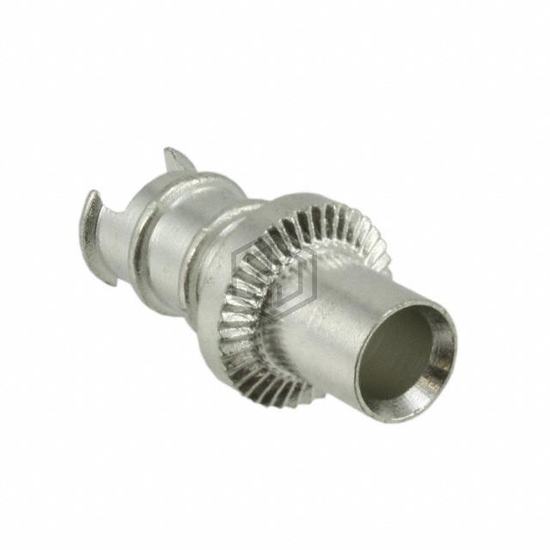

TERM TURRET SLOTTED L=8.74MM TIN
H2074Z01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET SLOTTED L=8.74MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 600
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Fork |
| Number of Turrets | Triple |
| Length - Above Board | 0.344" (8.74mm) |
| Length - Below Flange | 0.171" (4.34mm) |
| Length - Overall | 0.515" (13.08mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.250" (6.35mm) |
| Diameter - Turret Head | 0.180" (4.57mm) |
| Staking Side OD | 0.152" ~ 0.154" (3.86mm ~ 3.92mm) |
| Staking Side ID | 0.109" ~ 0.112" (2.77mm ~ 2.85mm) |
| Mounting Hole Diameter | 0.155" ~ 0.159" (3.94mm ~ 4.04mm) |
| Board Thickness | 0.126" (3.20mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H2074Z01 and get a quote within 24 hours.
