TERM TURRET PIN L=6.35MM TIN

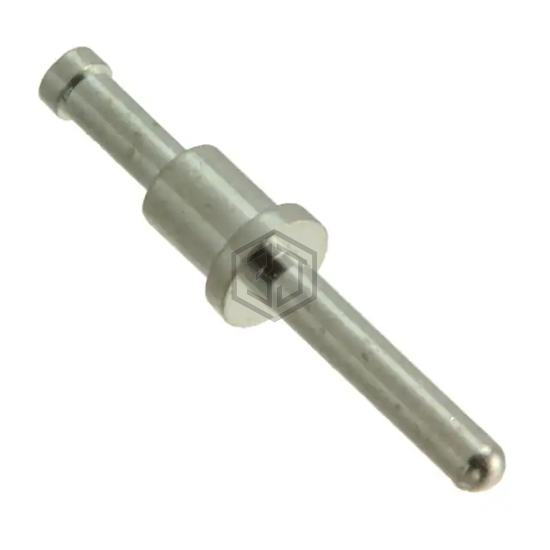

H9051-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET PIN L=6.35MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 10,055
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Double End, Pin |
| Number of Turrets | Single |
| Length - Above Board | 0.250" (6.35mm) |
| Length - Below Flange | 0.207" (5.26mm) |
| Length - Overall | 0.457" (11.61mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.094" (2.39mm) |
| Diameter - Turret Head | 0.050" (1.27mm) |
| Staking Side OD | 0.070" ~ 0.072" (1.78mm ~ 1.83mm) |
| Staking Side ID | - |
| Mounting Hole Diameter | 0.072" ~ 0.074" (1.83mm ~ 1.87mm) |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H9051-01 and get a quote within 24 hours.
