TERM TURRET HOLLOW L=3.96MM TIN

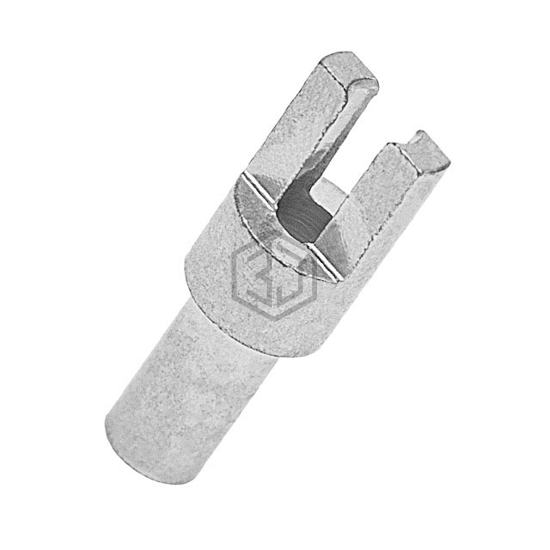

H9037-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET HOLLOW L=3.96MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 8,720
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Terminal Type | Single End, Fork, Hollow |
| Number of Turrets | Single |
| Length - Above Board | 0.156" (3.96mm) |
| Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) |
| Length - Overall | 0.281" (7.14mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.094" (2.39mm) |
| Diameter - Turret Head | - |
| Staking Side OD | 0.061" ~ 0.064" (1.55mm ~ 1.63mm) |
| Staking Side ID | - |
| Mounting Hole Diameter | 0.064" ~ 0.068" (1.63mm ~ 1.72mm) |
| Board Thickness | 0.094" (2.39mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H9037-01 and get a quote within 24 hours.
