TERM TURRET HOLLOW L=8.08-8.58MM

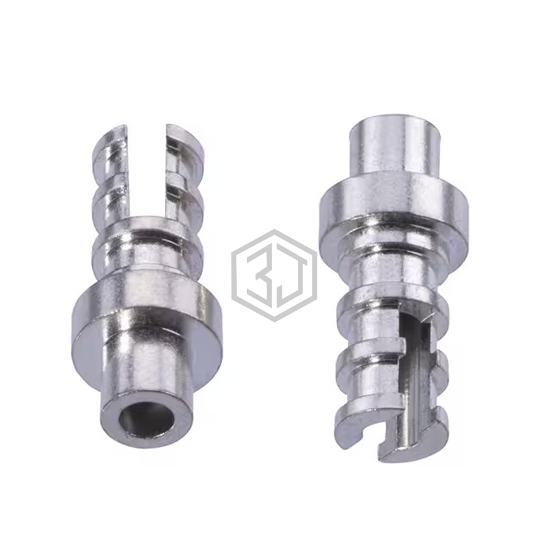

H9030-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET HOLLOW L=8.08-8.58MM. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 3,922
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Hollow |
| Number of Turrets | Triple |
| Length - Above Board | 0.318" ~ 0.338" (8.08mm ~ 8.58mm) |
| Length - Below Flange | 0.100" ~ 0.110" (2.54mm ~ 2.79mm) |
| Length - Overall | 0.418" (10.62mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.187" (4.75mm) |
| Diameter - Turret Head | 0.135" ~ 0.145" (3.43mm ~ 3.68mm) |
| Staking Side OD | 0.107" ~ 0.117" (2.73mm ~ 2.98mm) |
| Staking Side ID | 0.065" ~ 0.075" (1.65mm ~ 1.91mm) |
| Mounting Hole Diameter | 0.115" ~ 0.119" (2.93mm ~ 3.01mm) |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
