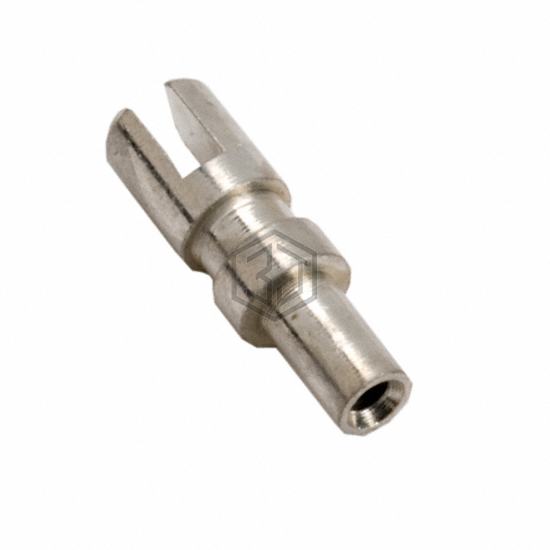

TERM TURRET HOLLOW L=3.96MM TIN
H9023-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET HOLLOW L=3.96MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 4,957
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Fork, Hollow |
| Number of Turrets | Single |
| Length - Above Board | 0.156" (3.96mm) |
| Length - Below Flange | 0.082" (2.08mm) |
| Length - Overall | 0.238" (6.04mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.072" (1.83mm) |
| Diameter - Turret Head | - |
| Staking Side OD | - |
| Staking Side ID | 0.039" (1.00mm) |
| Mounting Hole Diameter | 0.050" ~ 0.054" (1.27mm ~ 1.37mm) |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H9023-01 and get a quote within 24 hours.
