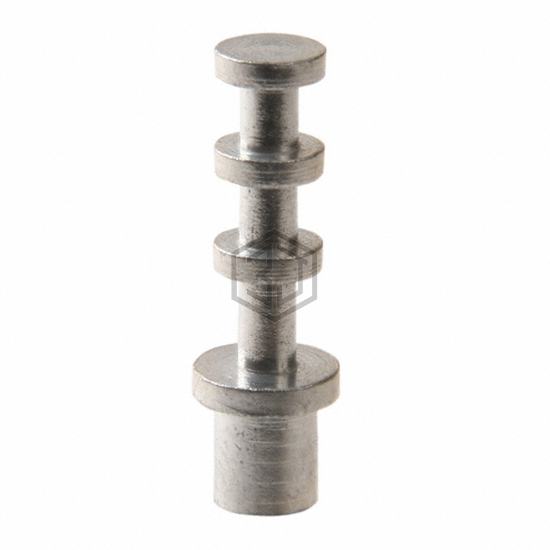

TERM TURRET SINGLE L=7.65MM TIN
H9020-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET SINGLE L=7.65MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 1,029
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End |
| Number of Turrets | Triple |
| Length - Above Board | 0.301" (7.65mm) |
| Length - Below Flange | 0.094" (2.39mm) |
| Length - Overall | 0.395" (10.03mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.125" (3.18mm) |
| Diameter - Turret Head | 0.093" (2.36mm) |
| Staking Side OD | - |
| Staking Side ID | 0.064" (1.63mm) |
| Mounting Hole Diameter | 0.092" ~ 0.096" (2.34mm ~ 2.44mm) |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H9020-01 and get a quote within 24 hours.
