TERM TURRET SINGLE L=2.39MM TIN

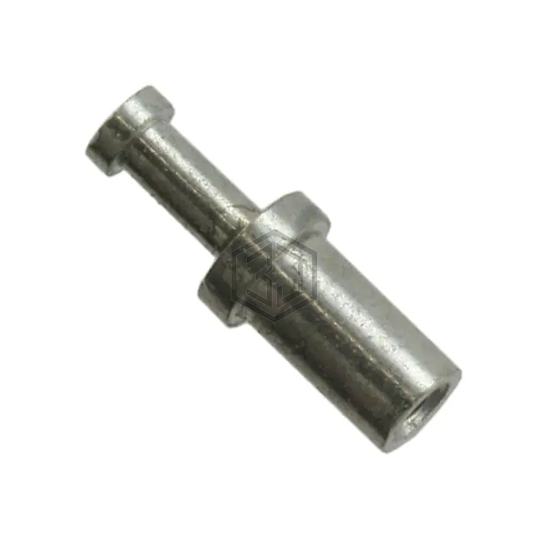

H9001-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET SINGLE L=2.39MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 3,919
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End |
| Number of Turrets | Single |
| Length - Above Board | 0.094" (2.39mm) |
| Length - Below Flange | 0.082" ~ 0.084" (2.08mm ~ 2.13mm) |
| Length - Overall | 0.176" (4.47mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.062" (1.57mm) |
| Diameter - Turret Head | 0.040" (1.02mm) |
| Staking Side OD | - |
| Staking Side ID | 0.028" (0.71mm) |
| Mounting Hole Diameter | 0.049" ~ 0.052" (1.24mm ~ 1.32mm) |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H9001-01 and get a quote within 24 hours.
