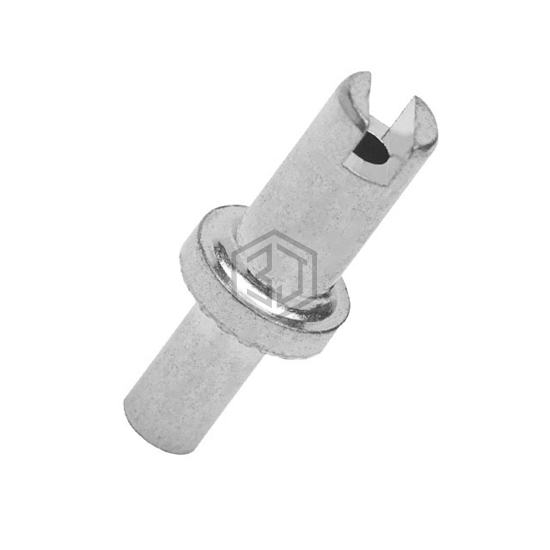

TERM TURRET HOLLOW L=6.12-6.62MM
H3072-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET HOLLOW L=6.12-6.62MM. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 6,510
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Fork, Hollow |
| Number of Turrets | Single |
| Length - Above Board | 0.241" ~ 0.261" (6.12mm ~ 6.62mm) |
| Length - Below Flange | 0.156" ~ 0.161" (3.96mm ~ 4.09mm) |
| Length - Overall | 0.402" ~ 0.422" (10.21mm ~ 10.71mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.156" ~ 0.161" (3.96mm ~ 4.09mm) |
| Diameter - Turret Head | - |
| Staking Side OD | 0.076" ~ 0.079" (1.93mm ~ 2.01mm) |
| Staking Side ID | - |
| Mounting Hole Diameter | 0.080" ~ 0.083" (2.03mm ~ 2.11mm) |
| Board Thickness | 0.126" (3.20mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
