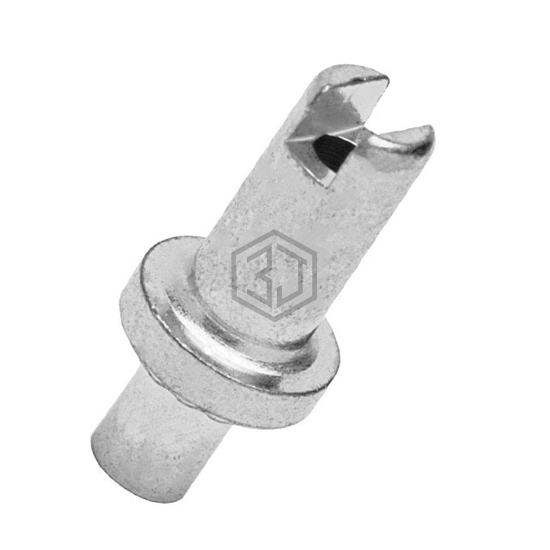

TERM TURRET HOLLOW L=6.25-6.63MM
H3070-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET HOLLOW L=6.25-6.63MM. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 8,457
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Fork, Hollow |
| Number of Turrets | Single |
| Length - Above Board | 0.246" ~ 0.261" (6.25mm ~ 6.63mm) |
| Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) |
| Length - Overall | 0.340" ~ 0.360" (8.64mm ~ 9.15mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.153" ~ 0.159" (3.88mm ~ 4.04mm) |
| Diameter - Turret Head | - |
| Staking Side OD | 0.076" ~ 0.079" (1.93mm ~ 2.01mm) |
| Staking Side ID | - |
| Mounting Hole Diameter | 0.080" ~ 0.083" (2.03mm ~ 2.11mm) |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H3070-01 and get a quote within 24 hours.
