TERM TURRET HOLLOW L=6.27-6.6MM

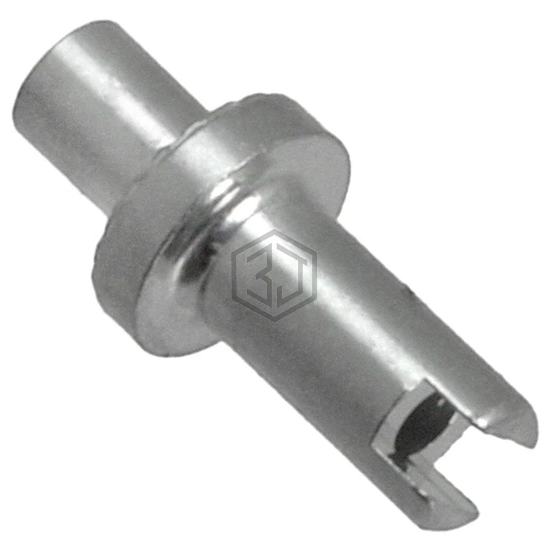

H3051-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET HOLLOW L=6.27-6.6MM. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 9,602
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Fork, Hollow |
| Number of Turrets | Single |
| Length - Above Board | 0.247" ~ 0.260" (6.27mm ~ 6.60mm) |
| Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) |
| Length - Overall | 0.346" ~ 0.354" (8.79mm ~ 8.99mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.153" ~ 0.159" (3.88mm ~ 4.04mm) |
| Diameter - Turret Head | - |
| Staking Side OD | 0.080" ~ 0.083" (2.03mm ~ 2.12mm) |
| Staking Side ID | - |
| Mounting Hole Diameter | 0.084" ~ 0.087" (2.13mm ~ 2.21mm) |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
