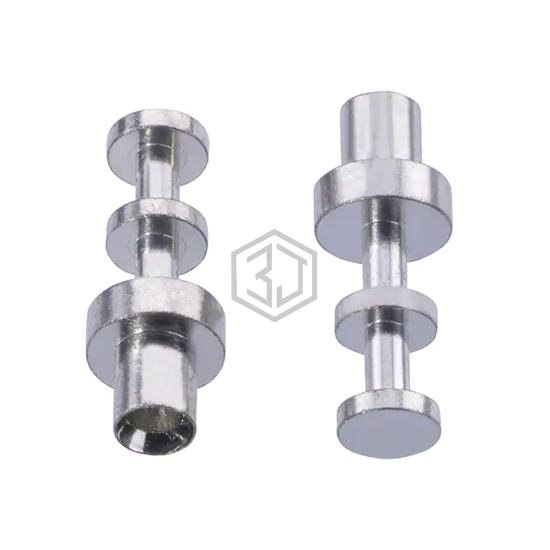

TERM TURRET SINGLE L=9.53MM TIN
H2122-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET SINGLE L=9.53MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 5,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End |
| Number of Turrets | Double |
| Length - Above Board | 0.375" (9.53mm) |
| Length - Below Flange | 0.125" ~ 0.130" (3.18mm ~ 3.30mm) |
| Length - Overall | 0.500" (12.70mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.187" (4.75mm) |
| Diameter - Turret Head | 0.137" ~ 0.140" (3.48mm ~ 3.56mm) |
| Staking Side OD | - |
| Staking Side ID | 0.073" ~ 0.076" (1.85mm ~ 1.93mm) |
| Mounting Hole Diameter | 0.112" ~ 0.115" (2.85mm ~ 2.93mm) |
| Board Thickness | 0.094" (2.39mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H2122-01 and get a quote within 24 hours.
