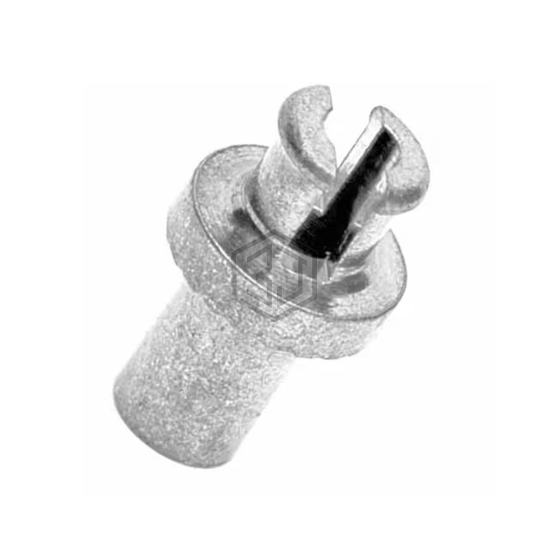

TERM TURRET HOLLOW L=3.45MM TIN
H2079-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET HOLLOW L=3.45MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 1,522
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Hollow |
| Number of Turrets | Single |
| Length - Above Board | 0.136" (3.45mm) |
| Length - Below Flange | 0.130" (3.30mm) |
| Length - Overall | 0.265" (6.73mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.156" (3.96mm) |
| Diameter - Turret Head | 0.107" (2.73mm) |
| Staking Side OD | 0.092" ~ 0.095" (2.34mm ~ 2.41mm) |
| Staking Side ID | 0.052" ~ 0.055" (1.32mm ~ 1.40mm) |
| Mounting Hole Diameter | 0.095" ~ 0.099" (2.42mm ~ 2.52mm) |
| Board Thickness | 0.094" (2.39mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H2079-01 and get a quote within 24 hours.
