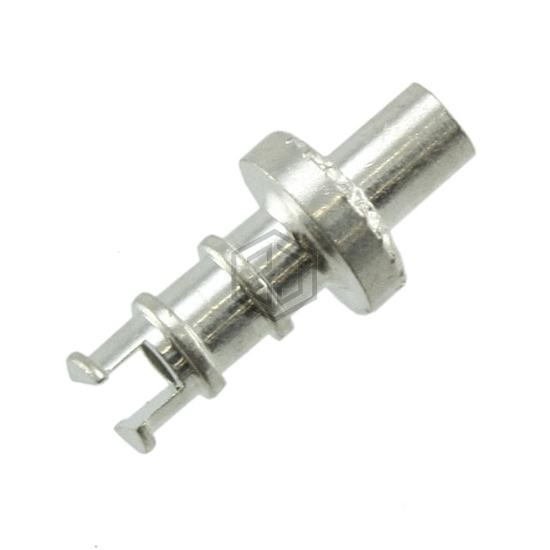

TERM TURRET SLOTTED L=6.52MM TIN
H2072Z01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET SLOTTED L=6.52MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 3,689
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Fork |
| Number of Turrets | Triple |
| Length - Above Board | 0.257" (6.52mm) |
| Length - Below Flange | 0.094" (2.39mm) |
| Length - Overall | 0.351" (8.91mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.156" (3.96mm) |
| Diameter - Turret Head | 0.100" (2.54mm) |
| Staking Side OD | 0.074" ~ 0.079" (1.87mm ~ 2.01mm) |
| Staking Side ID | 0.046" ~ 0.049" (1.17mm ~ 1.24mm) |
| Mounting Hole Diameter | 0.079" ~ 0.083" (2.01mm ~ 2.11mm) |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H2072Z01 and get a quote within 24 hours.
