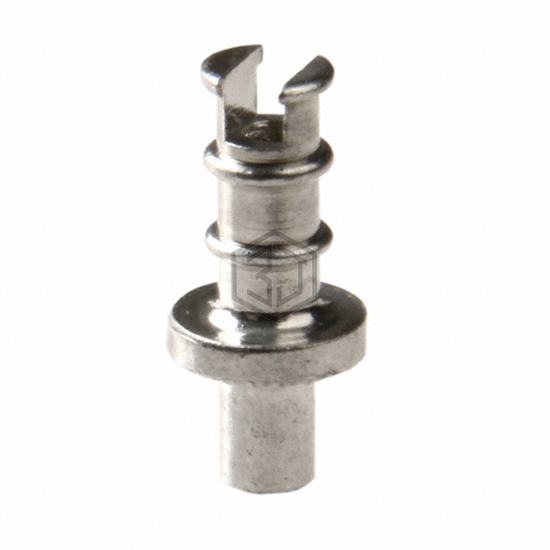

TERM TURRET SLOTTED L=6.35MM TIN
H2072-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET SLOTTED L=6.35MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 1,288
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Fork |
| Number of Turrets | Triple |
| Length - Above Board | 0.250" (6.35mm) |
| Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) |
| Length - Overall | 0.344" (8.74mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.156" (3.96mm) |
| Diameter - Turret Head | 0.128" (3.25mm) |
| Staking Side OD | 0.080" ~ 0.085" (2.03mm ~ 2.16mm) |
| Staking Side ID | 0.055" ~ 0.060" (1.40mm ~ 1.53mm) |
| Mounting Hole Diameter | 0.085" ~ 0.089" (2.17mm ~ 2.26mm) |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H2072-01 and get a quote within 24 hours.
