TERM TURRET SLOTTED L=9.12MM TIN

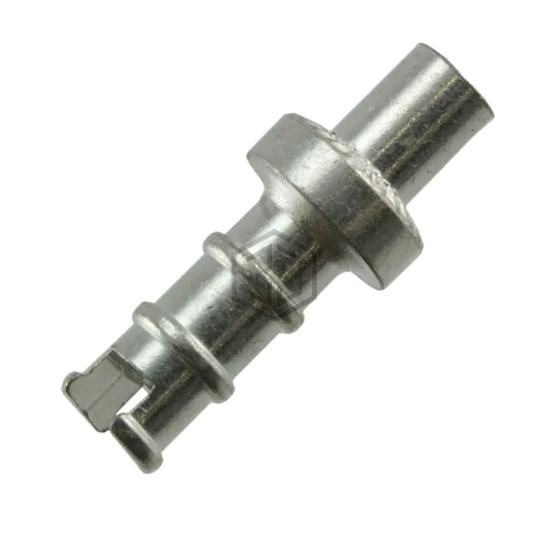

H2071Z01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET SLOTTED L=9.12MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 974
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Fork |
| Number of Turrets | Triple |
| Length - Above Board | 0.359" (9.12mm) |
| Length - Below Flange | 0.125" (3.18mm) |
| Length - Overall | 0.484" (12.29mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.187" (4.75mm) |
| Diameter - Turret Head | 0.125" (3.18mm) |
| Staking Side OD | 0.100" ~ 0.105" (2.54mm ~ 2.67mm) |
| Staking Side ID | 0.067" ~ 0.070" (1.70mm ~ 1.78mm) |
| Mounting Hole Diameter | 0.105" ~ 0.109" (2.67mm ~ 2.77mm) |
| Board Thickness | 0.094" (2.39mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H2071Z01 and get a quote within 24 hours.
