TERM TURRET SINGLE L=3.18MM TIN

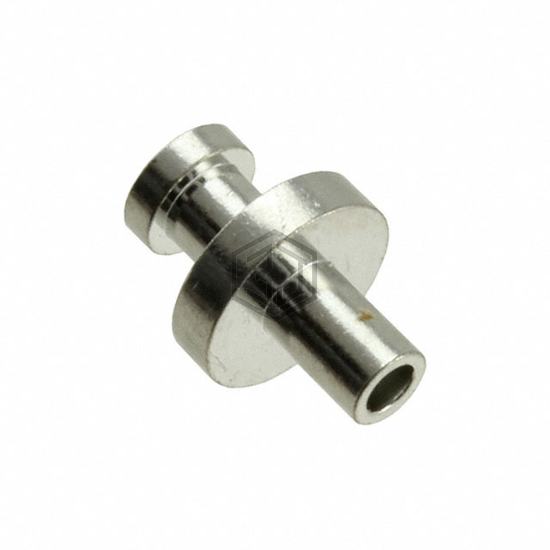

H2061-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET SINGLE L=3.18MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 2,025
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End |
| Number of Turrets | Single |
| Length - Above Board | 0.125" (3.18mm) |
| Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) |
| Length - Overall | 0.219" (5.56mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.156" ~ 0.161" (3.96mm ~ 4.09mm) |
| Diameter - Turret Head | 0.089" ~ 0.094" (2.26mm ~ 2.39mm) |
| Staking Side OD | 0.059" ~ 0.063" (1.50mm ~ 1.59mm) |
| Staking Side ID | - |
| Mounting Hole Diameter | 0.063" ~ 0.066" (1.60mm ~ 1.68mm) |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H2061-01 and get a quote within 24 hours.
