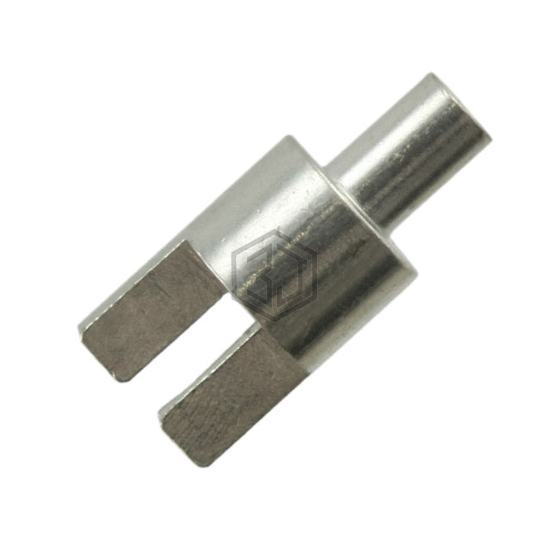

TERM TURRET HOLLOW L=4.78MM TIN
H2051-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET HOLLOW L=4.78MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 42,650
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Fork, Hollow |
| Number of Turrets | Single |
| Length - Above Board | 0.188" (4.78mm) |
| Length - Below Flange | 0.089" ~ 0.094" (2.26mm ~ 2.39mm) |
| Length - Overall | - |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.125" (3.18mm) |
| Diameter - Turret Head | - |
| Staking Side OD | 0.057" ~ 0.063" (1.45mm ~ 1.59mm) |
| Staking Side ID | 0.040" ~ 0.043" (1.02mm ~ 1.09mm) |
| Mounting Hole Diameter | 0.063" ~ 0.066" (1.60mm ~ 1.68mm) |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H2051-01 and get a quote within 24 hours.
