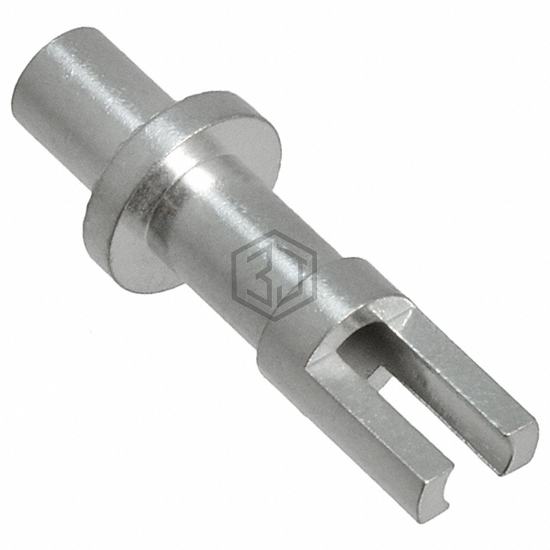

TERM TURRET HOLLOW L=12.7MM TIN
H2039-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET HOLLOW L=12.7MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 185
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Fork, Hollow |
| Number of Turrets | Single |
| Length - Above Board | 0.500" (12.70mm) |
| Length - Below Flange | 0.156" ~ 0.161" (3.96mm ~ 4.09mm) |
| Length - Overall | 0.656" (16.66mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.219" (5.56mm) |
| Diameter - Turret Head | 0.151" ~ 0.156" (3.83mm ~ 3.96mm) |
| Staking Side OD | 0.122" ~ 0.125" (3.10mm ~ 3.18mm) |
| Staking Side ID | 0.086" ~ 0.089" (2.18mm ~ 2.26mm) |
| Mounting Hole Diameter | 0.126" ~ 0.129" (3.19mm ~ 3.28mm) |
| Board Thickness | 0.126" (3.20mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for H2039-01 and get a quote within 24 hours.
