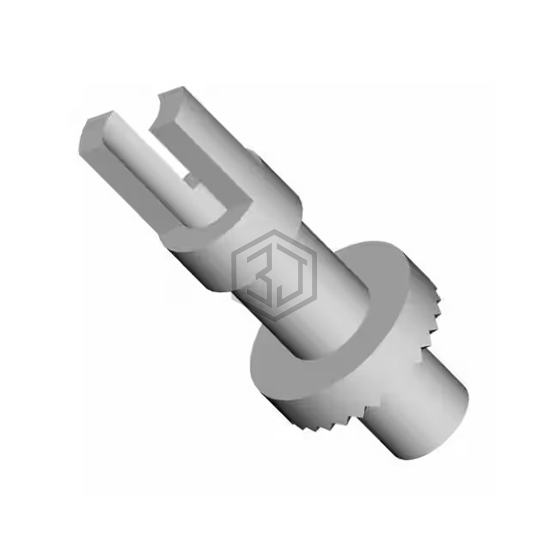

TERM TURRET HOLLOW L=9.53MM TIN
H2032-01 is a Terminals - Turret Connectors manufactured by Harwin Inc.. TERM TURRET HOLLOW L=9.53MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 1,443
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End, Fork, Hollow |
| Number of Turrets | Single |
| Length - Above Board | 0.375" (9.53mm) |
| Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) |
| Length - Overall | 0.469" (11.90mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.187" (4.75mm) |
| Diameter - Turret Head | 0.120" ~ 0.125" (3.05mm ~ 3.18mm) |
| Staking Side OD | 0.091" ~ 0.094" (2.31mm ~ 2.39mm) |
| Staking Side ID | 0.067" ~ 0.070" (1.70mm ~ 1.78mm) |
| Mounting Hole Diameter | 0.094" ~ 0.097" (2.39mm ~ 2.46mm) |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
