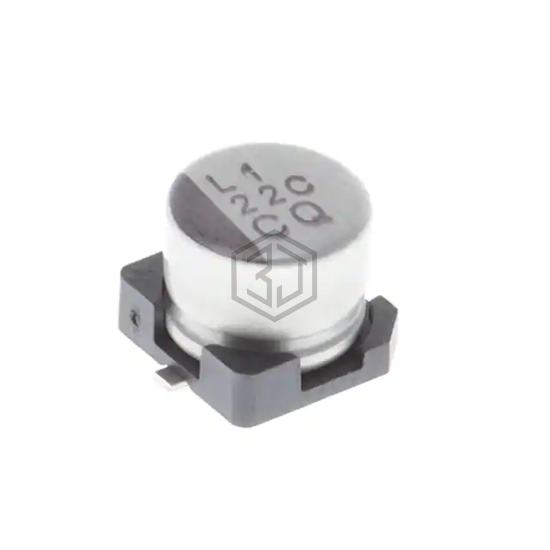

CAP ALUM 22UF 20% 16V SMD
UCQ1C220MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,386
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 45 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUT1C220MCL1GS | Nichicon | CAP ALUM 22UF 20% 16V SMD | 100% | View |
| MAL213966229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 25V SMD | 71% | View |
| EEE-FN1C220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V SMD | 67% | View |
| VZH220M1CTR-0506S | SURGE | CAP ALUM 22UF 20% 16V SMD | 64% | View |
| UWT1H220MCL6GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 60% | View |
| UWD1C220MCL1GS | Nichicon | CAP ALUM 22UF 20% 16V SMD | 52% | View |
Submit your RFQ for UCQ1C220MCL1GB and get a quote within 24 hours.
