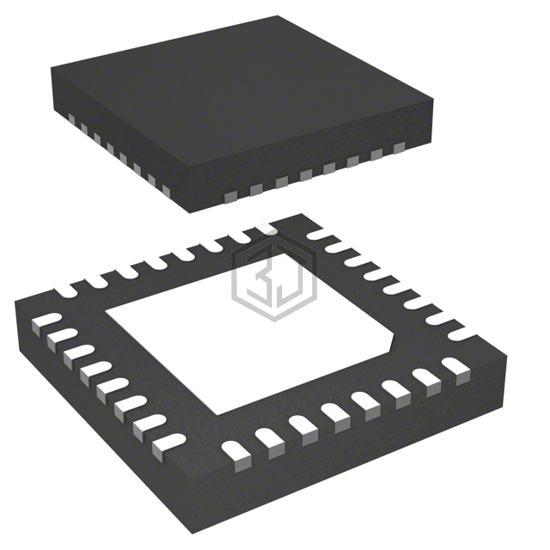

IC MOTOR DRIVER 45V 32QFN
AP1025BEN is a PMIC - Full, Half-Bridge Drivers manufactured by Asahi Kasei Microdevices/AKM. IC MOTOR DRIVER 45V 32QFN. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 32-WFQFN Exposed Pad.
In Stock: 3,356
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (4) |
| Applications | General Purpose, Stepper Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 850mOhm LS + HS |
| Current - Output / Channel | 1.6A |
| Current - Peak Output | - |
| Voltage - Supply | 3V ~ 5.5V |
| Voltage - Load | 9V ~ 45V |
| Operating Temperature | -30°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Over Temperature, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
AP1025BEN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TLE94004EPXUMA1 | Infineon Technologies | BODY BRIDGES | 83% | View |
| TLE94104EPXUMA1 | Infineon Technologies | BODY BRIDGES | 83% | View |
| DRV8932PPWPR | Texas Instruments | 33V, 1A QUAD INDEPENDENT HALF BR | 78% | View |
| DRV8935PRGER | Texas Instruments | 33V, 2.5A QUAD INDEPENDENT HALF | 63% | View |
| DRV8935PPWPR | Texas Instruments | 33V, 2.5A QUAD INDEPENDENT HALF | 63% | View |
| A3909GLYTR-T | Allegro MicroSystems | IC MOTOR DRIVER PAR 10MSOP | 62% | View |
Submit your RFQ for AP1025BEN and get a quote within 24 hours.
