Vishay Beyschlag/Draloric/BC Components
CAP ALUM 560UF 20% 200V SNAP

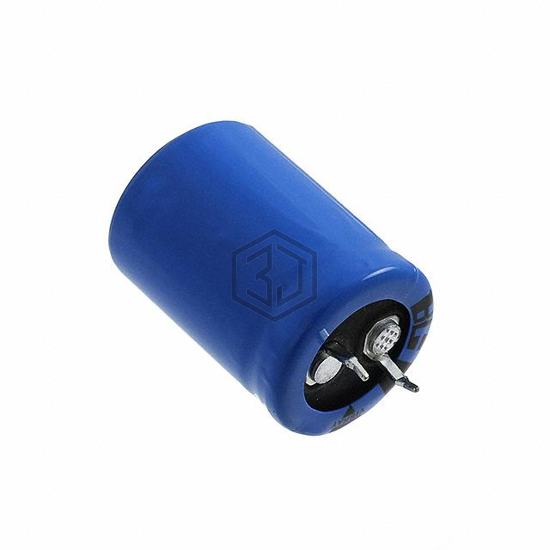

MAL209442561E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 6,828
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 220mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.61 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 150 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2D561MELY40 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 100% | View |
| LGJ2Z561MELC | Nichicon | CAP ALUM 560UF 20% 180V SNAP | 92% | View |
| EEU-TP1V561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 35V RADIAL | 67% | View |
| LQS2G561MELC40 | Nichicon | CAP ALUM 560UF 20% 400V SNAP | 66% | View |
| LGN2G561MELC40 | Nichicon | CAP ALUM 560UF 20% 400V SNAP | 66% | View |
| ELXS401VSN561MR45S | United Chemi-Con | CAP ALUM 560UF 20% 400V SNAP | 64% | View |
