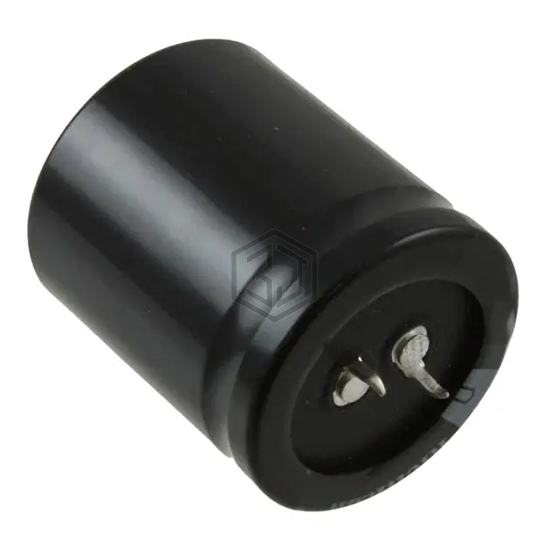

CAP ALUM 560UF 20% 400V SNAP
LGN2G561MELC40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 9,723
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.717 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXS401VSN561MR45S | United Chemi-Con | CAP ALUM 560UF 20% 400V SNAP | 97% | View |
| LQS2G561MELC40 | Nichicon | CAP ALUM 560UF 20% 400V SNAP | 94% | View |
| 400MXK560MEFCSN25X55 | Rubycon | CAP ALUM 560UF 20% 400V SNAP | 91% | View |
| B43544E5567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 78% | View |
| LGN2D561MELZ35 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 72% | View |
| LGN2D561MELY40 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 72% | View |
