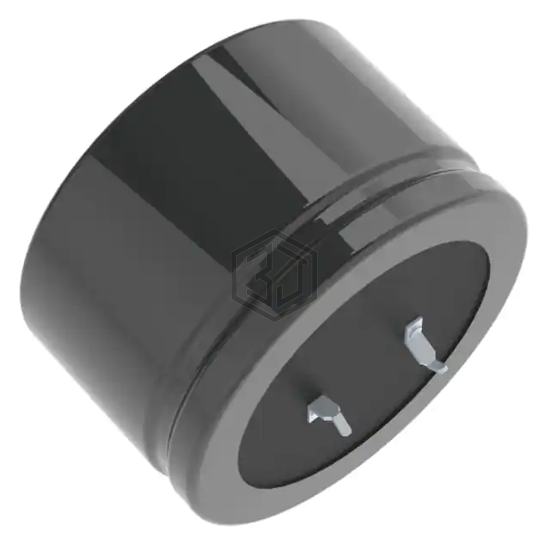

CAP ALUM 560UF 20% 180V SNAP
LGJ2Z561MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 9,213
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.43 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.145 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2D561MELY40 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 91% | View |
| 100YXG560MEFC16X40 | Rubycon | CAP ALUM 560UF 20% 100V RADIAL | 75% | View |
| EEU-TP1V561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 35V RADIAL | 70% | View |
| KY50VB561M12X25LL | United Chemi-Con | CAP ALUM 560UF 20% 50V RADIAL | 67% | View |
| 16ZLK560M10X12.5 | Rubycon | CAP ALUM 560UF 20% 16V RADIAL | 60% | View |
| 63YXH560MEFCGC16X25 | Rubycon | CAP ALUM 560UF 20% 63V RADIAL | 52% | View |
