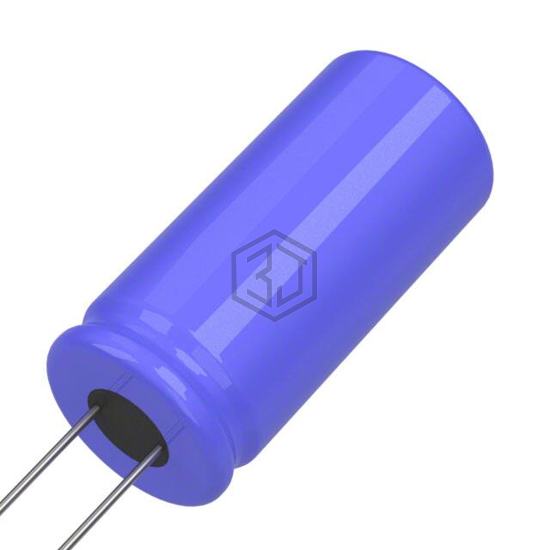

CAP ALUM 3300UF 20% 16V RADIAL
678D338M016FR4D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 3300UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,204
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 74mOhm @ 20Hz |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.358 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.94 A @ 100 kHz |
| Impedance | 34 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214065332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V RADIAL | 95% | View |
| EKMQ160ELL332MK25S | United Chemi-Con | CAP ALUM 3300UF 20% 16V RADIAL | 86% | View |
| ELXZ160ELL332MK35S | United Chemi-Con | CAP ALUM 3300UF 20% 16V RADIAL | 83% | View |
| 35PX3300MEFCGC16X25 | Rubycon | CAP ALUM 3300UF 20% 35V RADIAL | 74% | View |
| EEU-HD1H332 | Panasonic Electronic Components | CAP ALUM 3300UF 20% 50V RADIAL | 71% | View |
| UPA1E332MHD6 | Nichicon | CAP ALUM 3300UF 20% 25V RADIAL | 68% | View |
Submit your RFQ for 678D338M016FR4D and get a quote within 24 hours.
