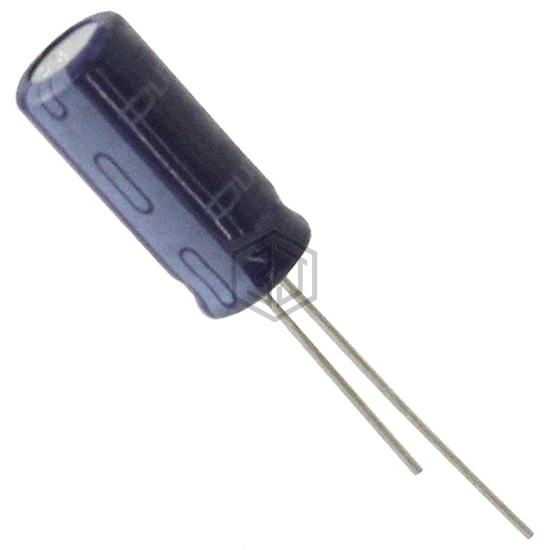

CAP ALUM 3300UF 20% 16V RADIAL
ELXZ160ELL332MK35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3300UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,415
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.8825 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.51 A @ 100 kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214065332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V RADIAL | 90% | View |
| ELXY250EC3332ML35S | United Chemi-Con | CAP ALUM 3300UF 20% 25V RADIAL | 88% | View |
| UPA1E332MHD6 | Nichicon | CAP ALUM 3300UF 20% 25V RADIAL | 82% | View |
| MAL214656332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 25V RADIAL | 79% | View |
| MAL224650332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 74% | View |
| MAL225061332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 50V RADIAL | 70% | View |
Submit your RFQ for ELXZ160ELL332MK35S and get a quote within 24 hours.
