CAP ALUM 3300UF 20% 25V RADIAL

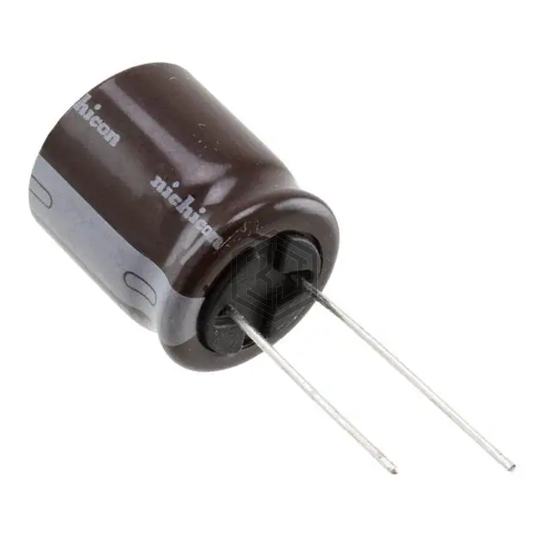

UPA1E332MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,093
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.244 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.64 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ160ELL332MK35S | United Chemi-Con | CAP ALUM 3300UF 20% 16V RADIAL | 82% | View |
| MAL224650332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 82% | View |
| MAL225061332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 50V RADIAL | 76% | View |
| 35PX3300MEFCGC16X25 | Rubycon | CAP ALUM 3300UF 20% 35V RADIAL | 75% | View |
| MAL214065332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V RADIAL | 72% | View |
| 678D338M016FR4D | Vishay Sprague | CAP ALUM 3300UF 20% 16V RADIAL | 68% | View |
Submit your RFQ for UPA1E332MHD6 and get a quote within 24 hours.
