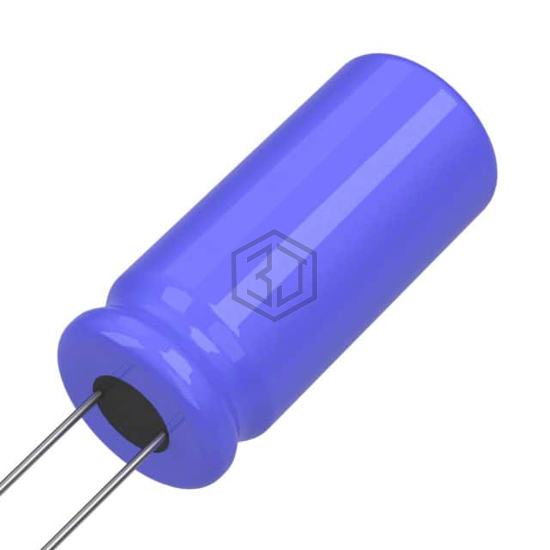

CAP ALUM 1000UF 20% 16V RADIAL
678D108M016DM3DE3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 1000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,428
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 130mOhm @ 20Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Impedance | 65 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.161" (29.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25WXA1000MEFC12.5X16 | Rubycon | CAP ALUM 1000UF 20% 25V RADIAL | 80% | View |
| 25WXA1000MG412.5X16 | Rubycon | CAP ALUM 1000UF 20% 25V RADIAL | 80% | View |
| UBW1C102MHD | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 79% | View |
| 25JXF1000MEFC10X20 | Rubycon | CAP ALUM 1000UF 20% 25V RADIAL | 72% | View |
| EEU-FC0J102 | Panasonic Electronic Components | CAP ALUM 1000UF 20% 6.3V RADIAL | 68% | View |
| UBX1V102MHL | Nichicon | CAP ALUM 1000UF 20% 35V RADIAL | 67% | View |
Submit your RFQ for 678D108M016DM3DE3 and get a quote within 24 hours.
