CAP ALUM 1000UF 20% 16V RADIAL

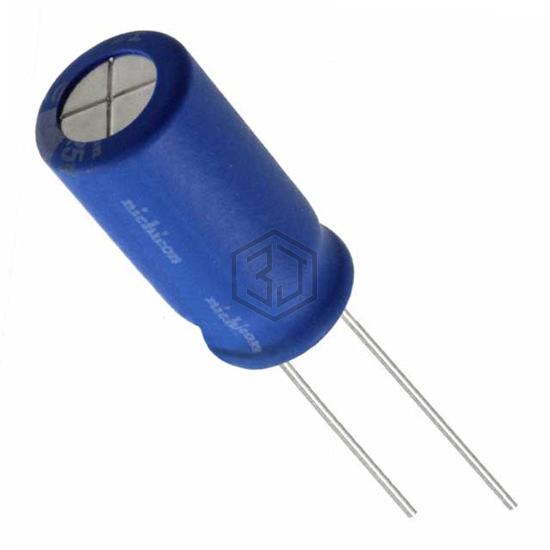

UBW1C102MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 998.3 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.49 A @ 100 kHz |
| Impedance | 42 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UBW1C102MHD and get a quote within 24 hours.
