Panasonic Electronic Components

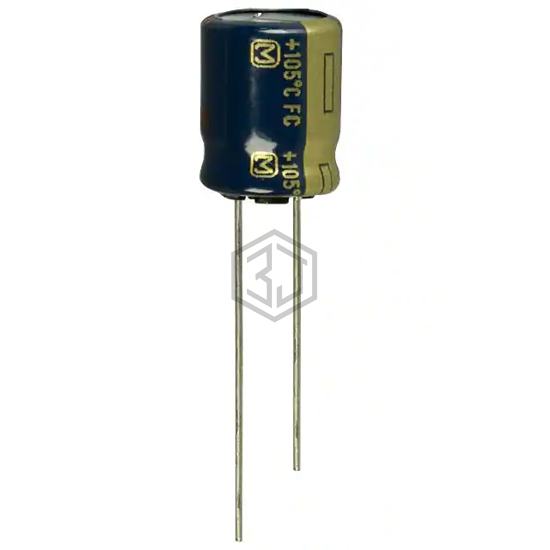

CAP ALUM 1000UF 20% 6.3V RADIAL
EEU-FC0J102 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 1,858
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 566.3 mA @ 120 Hz |
| Ripple Current @ High Frequency | 755 mA @ 100 kHz |
| Impedance | 90 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25WXA1000MEFC12.5X16 | Rubycon | CAP ALUM 1000UF 20% 25V RADIAL | 73% | View |
| 25WXA1000MG412.5X16 | Rubycon | CAP ALUM 1000UF 20% 25V RADIAL | 73% | View |
| 678D108M016DM3DE3 | Vishay Sprague | CAP ALUM 1000UF 20% 16V RADIAL | 68% | View |
| 517D108M025DG6AE3 | Vishay Sprague | CAP ALUM 1000UF 20% 25V RADIAL | 63% | View |
| MAL216051102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 58% | View |
| UBX1V102MHL | Nichicon | CAP ALUM 1000UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for EEU-FC0J102 and get a quote within 24 hours.
