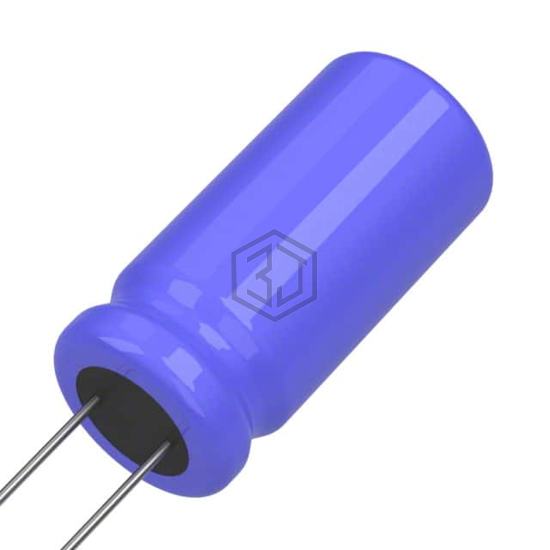

CAP ALUM 470UF 25V RADIAL
672D477F025DS5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 470UF 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,282
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 220mOhm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.645 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.35 A @ 100 kHz |
| Impedance | 70 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.791" (45.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D477M040EK4D | Vishay Sprague | CAP ALUM 470UF 20% 40V RADIAL | 58% | View |
| MAL216056471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 57% | View |
| ELZA250ELL471MJC5S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 57% | View |
| MAL215098473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 57% | View |
| MAL211918471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 63V AXIAL | 54% | View |
| MAL214058471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 52% | View |
