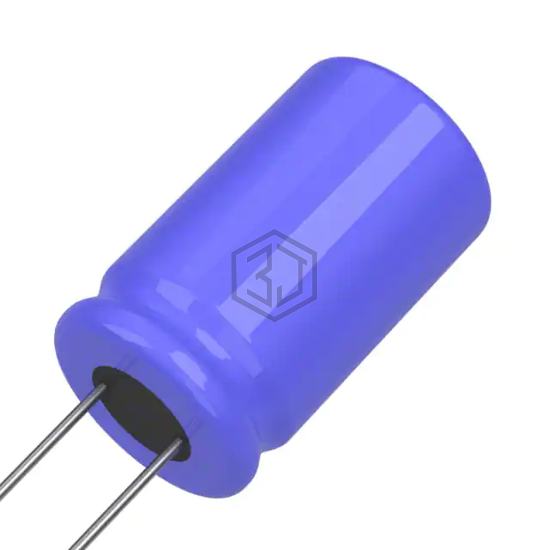

CAP ALUM 470UF 20% 40V RADIAL
678D477M040EK4D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 470UF 20% 40V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 40 V, package / case Radial, Can.
In Stock: 9,621
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 133mOhm @ 20Hz |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 896 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.28 A @ 100 kHz |
| Impedance | 50 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.032" (26.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214058471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 78% | View |
| 100PX470MEFCGC16X25 | Rubycon | CAP ALUM 470UF 20% 100V RADIAL | 74% | View |
| MAL211827471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 40V AXIAL | 73% | View |
| ELZA250ELL471MJC5S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 66% | View |
| MAL216056471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 63% | View |
| MAL211918471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 63V AXIAL | 61% | View |
