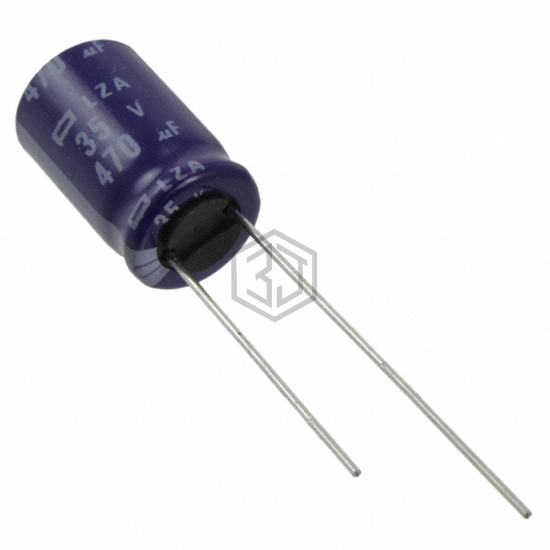

CAP ALUM 470UF 20% 25V RADIAL
ELZA250ELL471MJC5S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,966
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 480 mA @ 120 Hz |
| Ripple Current @ High Frequency | 960 mA @ 100 kHz |
| Impedance | 63 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216056471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 83% | View |
| 678D477M040EK4D | Vishay Sprague | CAP ALUM 470UF 20% 40V RADIAL | 66% | View |
| 100PX470MEFCGC16X25 | Rubycon | CAP ALUM 470UF 20% 100V RADIAL | 62% | View |
| MAL214058471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 62% | View |
| MAL214034471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 10V RADIAL | 60% | View |
| 672D477F025DS5D | Vishay Sprague | CAP ALUM 470UF 25V RADIAL | 57% | View |
Submit your RFQ for ELZA250ELL471MJC5S and get a quote within 24 hours.
