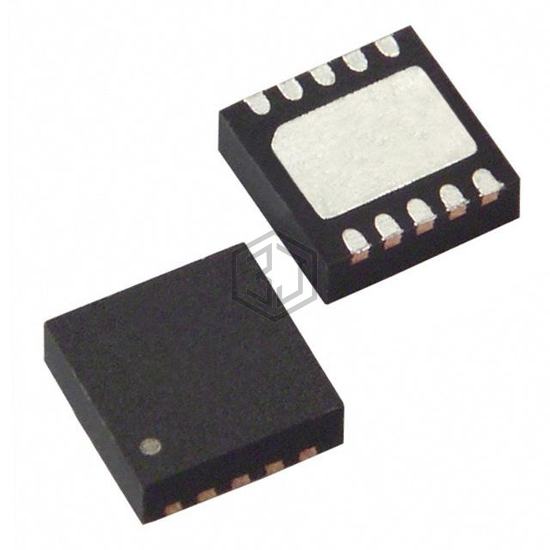

IC SWITCH DUAL SPDT 10DFN
DG2517DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL SPDT 10DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.
In Stock: 9,836
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 4Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 20ns |
| -3db Bandwidth | 242MHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -73dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
DG2517DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2034EDN-T1-GE4 | Vishay Siliconix | IC SWITCH SP4T SINGLE 12QFN | 76% | View |
| MAX4782ETE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16TQFN | 71% | View |
| MAX4783ETE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH TRIPLE SPDT 16TQFN | 66% | View |
| ISL43L120IU | Intersil | SPDT, 2 FUNC, 2 CHANNEL, CMOS | 65% | View |
| MAX4781EUE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16TSSOP | 62% | View |
| MAX4781EGE+ | Analog Devices Inc./Maxim Integrated | HIGH-SPEED, LOW-VOLTAGE, 0.7 CMO | 62% | View |
