SPDT, 2 FUNC, 2 CHANNEL, CMOS

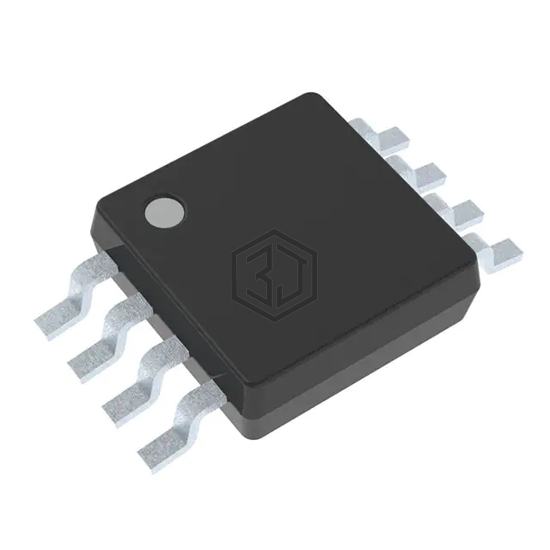

ISL43L120IU is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPDT, 2 FUNC, 2 CHANNEL, CMOS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 3,495
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 250mOhm |
| Channel-to-Channel Matching (ΔRon) | 5mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 25ns |
| -3db Bandwidth | - |
| Charge Injection | -125pC |
| Channel Capacitance (CS(off), CD(off)) | 182pF, 182pF |
| Current - Leakage (IS(off)) (Max) | 3nA |
| Crosstalk | -94dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
ISL43L120IU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL43L710IU | Renesas Electronics America Inc | IC SWITCH DUAL SPST 8MSOP | 100% | View |
| MAX4782ETE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16TQFN | 75% | View |
| MAX4781EUE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16TSSOP | 67% | View |
| MAX4781EGE+ | Analog Devices Inc./Maxim Integrated | HIGH-SPEED, LOW-VOLTAGE, 0.7 CMO | 67% | View |
| DG2034EDN-T1-GE4 | Vishay Siliconix | IC SWITCH SP4T SINGLE 12QFN | 65% | View |
| NX3L1G3157GMZ | NXP USA Inc. | IC SWITCH SPDT 6XSON | 54% | View |
Submit your RFQ for ISL43L120IU and get a quote within 24 hours.
