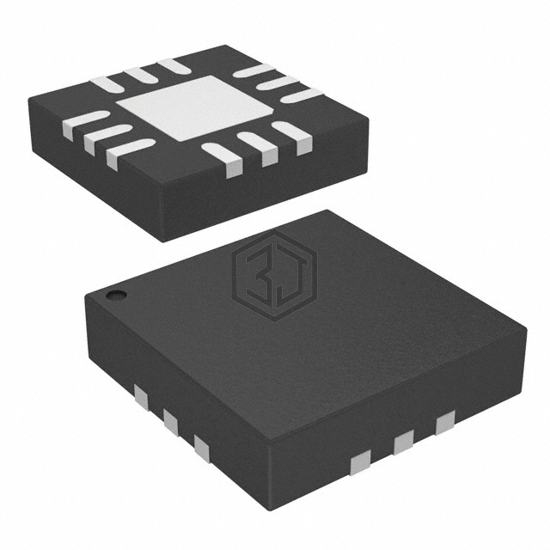

IC SWITCH SP4T SINGLE 12QFN
DG2034EDN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SP4T SINGLE 12QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-VFQFN Exposed Pad, number of circuits 1.
In Stock: 24,760
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 2.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 20mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 20ns |
| -3db Bandwidth | 166MHz |
| Charge Injection | -2.6pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF, - |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -71dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFQFN Exposed Pad |
| Supplier Device Package | 12-QFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4781EUE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16TSSOP | 79% | View |
| MAX4781EGE+ | Analog Devices Inc./Maxim Integrated | HIGH-SPEED, LOW-VOLTAGE, 0.7 CMO | 79% | View |
| DG2517DN-T1-E4 | Vishay Siliconix | IC SWITCH DUAL SPDT 10DFN | 76% | View |
| MAX4782ETE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16TQFN | 70% | View |
| MAX4783ETE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH TRIPLE SPDT 16TQFN | 65% | View |
| MAX4783ETE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH TRIPLE SPDT 16TQFN | 65% | View |
Submit your RFQ for DG2034EDN-T1-GE4 and get a quote within 24 hours.
