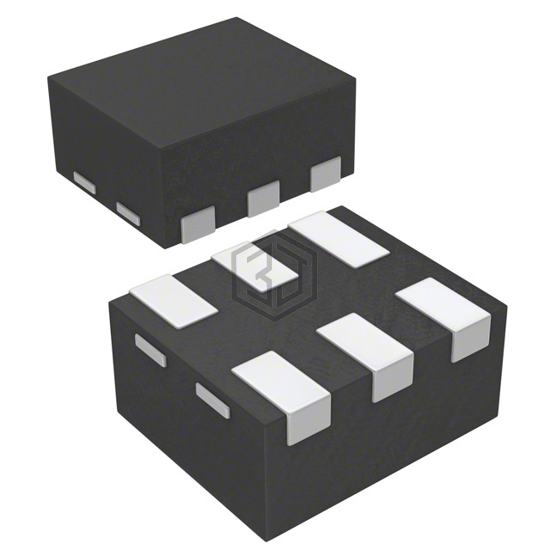

IC SWITCH DUAL LV 6MINIQFN
DG2511DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL LV 6MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.
In Stock: 7,504
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.3Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 31ns |
| -3db Bandwidth | - |
| Charge Injection | 14pC |
| Channel Capacitance (CS(off), CD(off)) | 19pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -64dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-miniQFN (1x1.2) |
DG2511DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PI5A4624TEX | Diodes Incorporated | IC SWITCH SPDT SOT23-6 | 90% | View |
| FSA2257L10X | onsemi | IC SWITCH DUAL SPDT 10MICROPAK | 85% | View |
| FSA1258L8X | Fairchild Semiconductor | SPST, 2 FUNC, 1 CHANNEL, CMOS | 84% | View |
| PI5A4626TEX | Diodes Incorporated | IC SWITCH SPST SOT23-5 | 73% | View |
| MAX4594DBVR | Texas Instruments | IC SWITCH SPST SOT23-5 | 68% | View |
| HI-8196PCTF | Holt Integrated Circuits Inc. | IC ANALOG SWITCH 4 X SPST 16CSP | 57% | View |
Submit your RFQ for DG2511DN-T1-E4 and get a quote within 24 hours.
