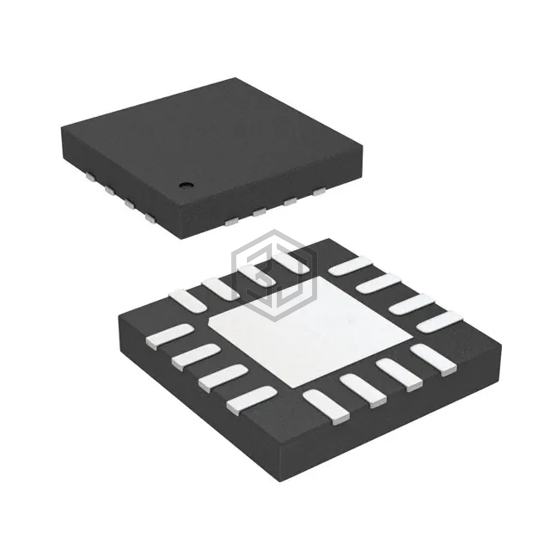

IC ANALOG SWITCH 4 X SPST 16CSP
HI-8196PCTF is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Holt Integrated Circuits Inc.. IC ANALOG SWITCH 4 X SPST 16CSP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, CSP, number of circuits 4.
In Stock: 3,806
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 31Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±3V ~ 10V |
| Switch Time (Ton, Toff) (Max) | 35ns, 20ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | -10pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-CSP (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI-8197PSTF | Holt Integrated Circuits Inc. | IC ANALOG SWITCH 4 X SPST 16SOIC | 100% | View |
| CD74HC4316NSR | Texas Instruments | IC SWITCH QUAD 1X2 16SO | 61% | View |
| CD74HCT4316M96 | Texas Instruments | IC SWITCH QUAD 1X2 16SOIC | 61% | View |
| CD74HC4316PW | Texas Instruments | IC SWITCH QUAD 1X2 16TSSOP | 61% | View |
| CD74HC4316M96 | Texas Instruments | IC SWITCH QUAD 1X2 16SOIC | 61% | View |
| CD74HC4316MG4 | Texas Instruments | IC SWITCH QUAD 1X2 16SOIC | 61% | View |
Submit your RFQ for HI-8196PCTF and get a quote within 24 hours.
