SPST, 2 FUNC, 1 CHANNEL, CMOS

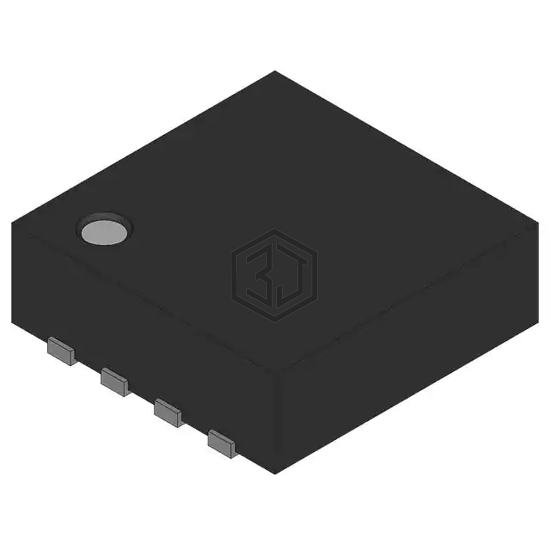

FSA1258L8X is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Fairchild Semiconductor. SPST, 2 FUNC, 1 CHANNEL, CMOS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFQFN, number of circuits 2.
In Stock: 46,199
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1.15Ohm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 15ns |
| -3db Bandwidth | 300MHz |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 11.5pF |
| Current - Leakage (IS(off)) (Max) | 2nA (Typ) |
| Crosstalk | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFQFN |
| Supplier Device Package | 8-MicroPak™ |
FSA1258L8X is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FSA4157AL6X_F087 | onsemi | IC SWITCH SPDT 6MICROPAK | 90% | View |
| FSA2257L10X | onsemi | IC SWITCH DUAL SPDT 10MICROPAK | 87% | View |
| DG2511DN-T1-E4 | Vishay Siliconix | IC SWITCH DUAL LV 6MINIQFN | 84% | View |
| MAX4594DBVR | Texas Instruments | IC SWITCH SPST SOT23-5 | 77% | View |
| HI-8197PSTF | Holt Integrated Circuits Inc. | IC ANALOG SWITCH 4 X SPST 16SOIC | 74% | View |
| HI-8196PCTF | Holt Integrated Circuits Inc. | IC ANALOG SWITCH 4 X SPST 16CSP | 74% | View |
Submit your RFQ for FSA1258L8X and get a quote within 24 hours.
