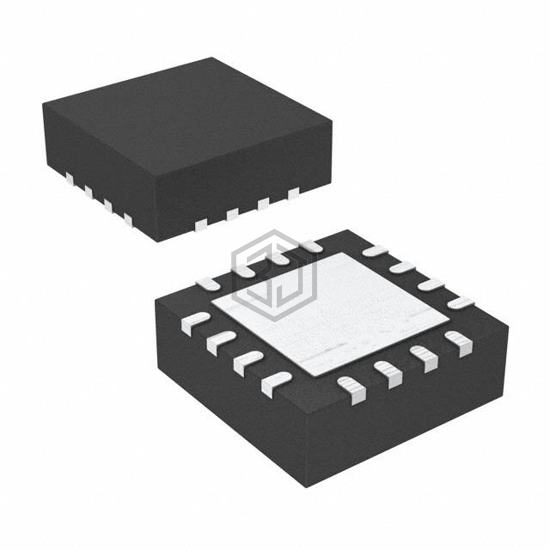

IC SWITCH DUAL DPDT 16QFN
DG2015DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL DPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 2.
In Stock: 2,598
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1.6Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 3.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 35ns |
| -3db Bandwidth | - |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 67pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
DG2015DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2032EDN-T1-GE4 | Vishay Siliconix | IC ANALOG SWITCH DUAL 12QFN | 92% | View |
| ISL54050IRUZ-T | Intersil | SPDT, 2 FUNC, 1 CHANNEL, CMOS, P | 73% | View |
| NX3L2267GM,115 | NXP USA Inc. | IC ANALOG SWITCH SPDT 10XQFN | 64% | View |
| NX3L4357GM,115 | NXP USA Inc. | IC ANALOG SWITCH SP3T 10XQFN | 55% | View |
| DG418LEDQ-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH 8MSOP | 50% | View |
| DG419LEDY-T1-GE4 | Vishay Siliconix | IC ANALOG SWITCH 8SOIC | 50% | View |
Submit your RFQ for DG2015DN-T1-E4 and get a quote within 24 hours.
