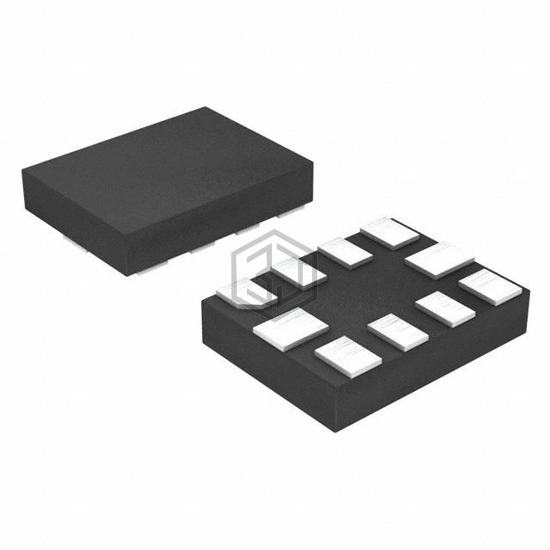

IC ANALOG SWITCH SP3T 10XQFN
NX3L4357GM,115 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC ANALOG SWITCH SP3T 10XQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-XFQFN, number of circuits 1.
In Stock: 49,415
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP3T |
| Multiplexer/Demultiplexer Circuit | 3:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 90mOhm |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-XFQFN |
| Supplier Device Package | 10-XQFN (1.55x2) |
