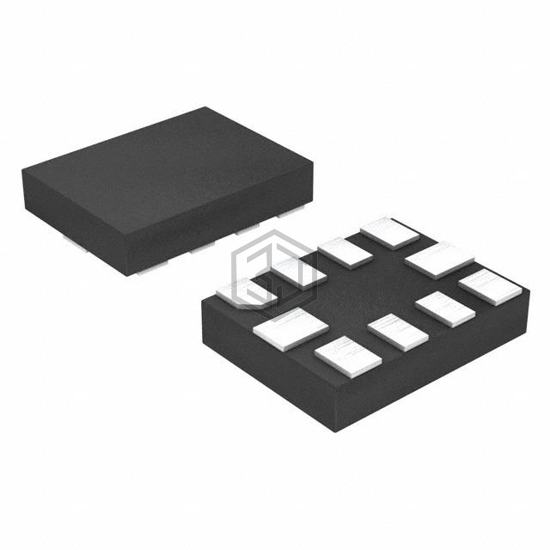

IC ANALOG SWITCH SPDT 10XQFN
NX3L2267GM,115 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC ANALOG SWITCH SPDT 10XQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-XFQFN, number of circuits 2.
In Stock: 53,975
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 90mOhm |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 37pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-XFQFN |
| Supplier Device Package | 10-XQFN (1.55x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NX3L2T384GT,115 | NXP USA Inc. | IC ANALOG SWITCH SPDT XSON8 | 100% | View |
| NX3L2267GU-Q100X | NXP USA Inc. | IC SWITCH ANLG SPDT 10XQFN | 100% | View |
| NX3L4053PW-Q100J | NXP USA Inc. | IC ANALOG SWITCH SPDT 16TSSOP | 97% | View |
| NX3L4357GM,115 | NXP USA Inc. | IC ANALOG SWITCH SP3T 10XQFN | 94% | View |
| NX3L1T5157GMZ | NXP USA Inc. | IC ANALOG SWITCH SPDT XSON6 | 94% | View |
| SN74HC4852QPWRQ1 | Texas Instruments | IC MUX/DEMUX DUAL 4X1 16TSSOP | 69% | View |
