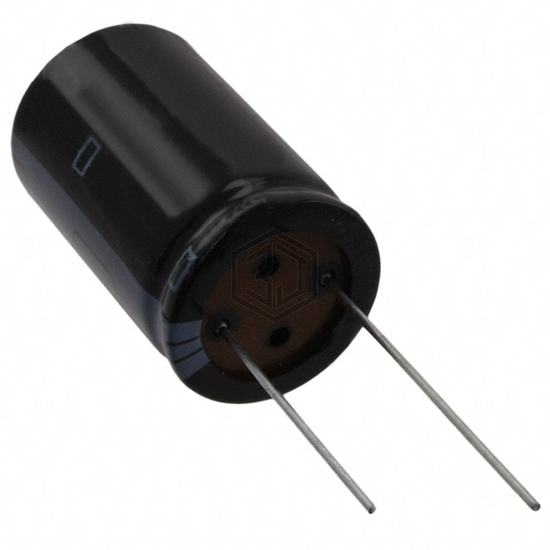

CAP ALUM 22000UF 20% 16V RADIAL
SMG16VB223M25DLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,560
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 7.053Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.72 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.0176 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG16VB223M25DLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGY1E223MELC35 | Nichicon | CAP ALUM 22000UF 20% 25V SNAP | 85% | View |
| MAL216254223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 10V SNAP | 71% | View |
| MAL215876223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SNAP | 69% | View |
| ESMH350VSN223MR50S | United Chemi-Con | CAP ALUM 22000UF 20% 35V SNAP | 62% | View |
| 50USC22000MEFCSN35X50 | Rubycon | CAP ALUM 22000UF 20% 50V SNAP | 56% | View |
| 35USC22000MEFCSN35X40 | Rubycon | CAP ALUM 22000UF 20% 35V SNAP | 52% | View |
Submit your RFQ for SMG16VB223M25DLL and get a quote within 24 hours.
