CAP ALUM 22000UF 20% 35V SNAP

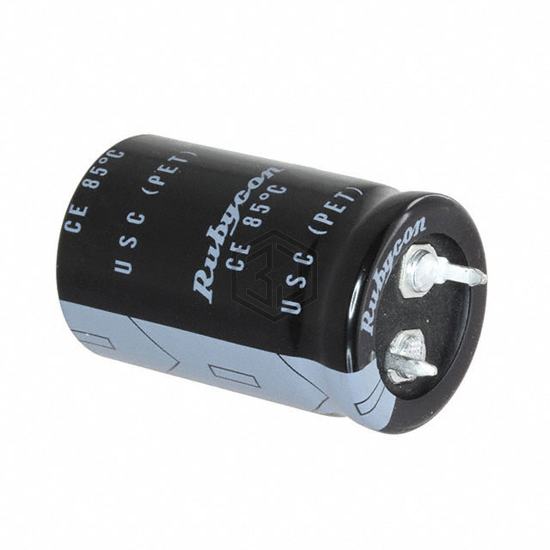

35USC22000MEFCSN35X40 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 7,895
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.337 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH350VSN223MR50S | United Chemi-Con | CAP ALUM 22000UF 20% 35V SNAP | 90% | View |
| MAL216257223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 40V SNAP | 86% | View |
| 380LX223M050A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 50V SNAP | 81% | View |
| MAL215876223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SNAP | 81% | View |
| 50USC22000MEFCSN35X50 | Rubycon | CAP ALUM 22000UF 20% 50V SNAP | 77% | View |
| 383LX223M080B092VS | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 80V SNAP | 69% | View |
Submit your RFQ for 35USC22000MEFCSN35X40 and get a quote within 24 hours.
