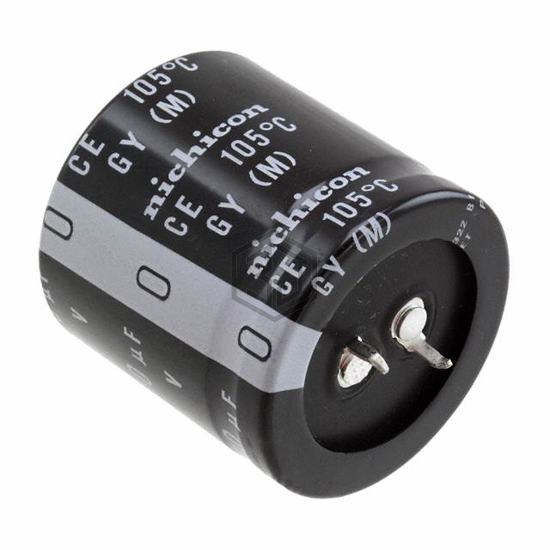

CAP ALUM 22000UF 20% 25V SNAP
LGY1E223MELC35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 2,966
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.025 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX223M025J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 25V SNAP | 93% | View |
| 229LMB025M2EE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22000UF 20% 25V SNAP | 92% | View |
| MAL215876223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SNAP | 85% | View |
| EKMH350VNN223MA50S | United Chemi-Con | CAP ALUM 22000UF 20% 35V SNAP | 75% | View |
| B41252C3229M | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 10V SNAP | 70% | View |
| SLP223M010C5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 10V SNAP | 67% | View |
Submit your RFQ for LGY1E223MELC35 and get a quote within 24 hours.
