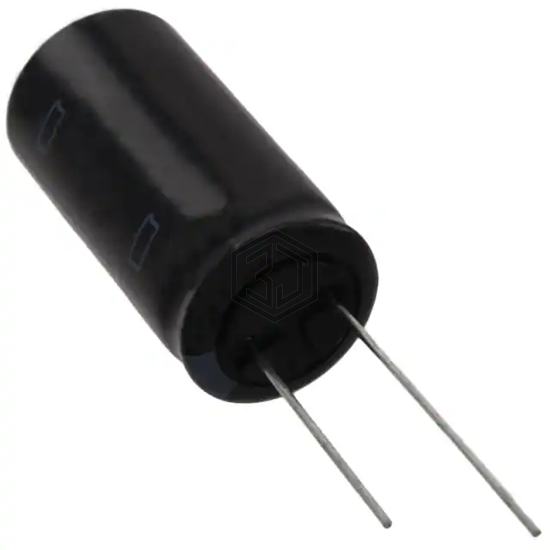

CAP ALUM 10000UF 20% 16V RADIAL
SMG16VB103M18X35LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,604
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 753mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.92 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.1536 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG16VB103M18X35LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU1C103MELZ | Nichicon | CAP ALUM 10000UF 20% 16V SNAP | 86% | View |
| 109CKS010MQW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 10V RADIAL | 79% | View |
| LKG1E103MESAAK | Nichicon | CAP ALUM 10000UF 20% 25V SNAP | 77% | View |
| B41821A3109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 10V RADIAL | 77% | View |
| 35MXC10000MEFCSN25X40 | Rubycon | CAP ALUM 10000UF 20% 35V SNAP | 75% | View |
| LKS1K103MESC | Nichicon | CAP ALUM 10000UF 20% 80V SNAP | 56% | View |
Submit your RFQ for SMG16VB103M18X35LL and get a quote within 24 hours.
